Product Details

IG06 INJECTOR.png

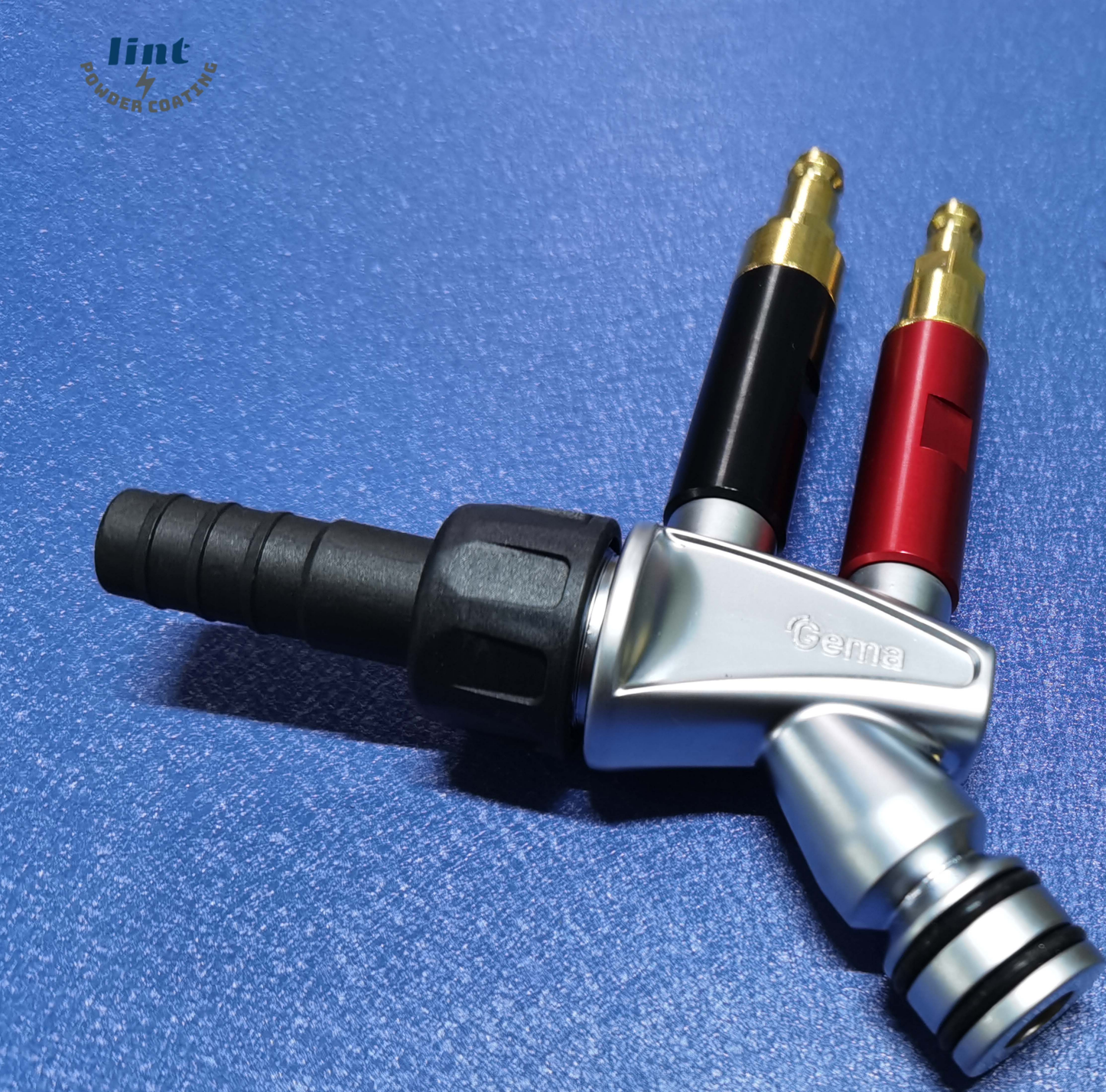

-	IG06 Powder injector - complete (pos. 1-13)	1007780
A	Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12)	1005589
B	Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13)	1005590
C	Injector body - complete (incl. pos. 1, 2, 10 and 11)	1006530
1	Injector body (without pos. 2)	1006484
2	O-ring - Ø 16x2 mm	1007794
3	Insert sleeve - PTFE, complete	1006485
4	Hose connection - Ø 10-12 mm, complete (incl. pos 4.1)	1006531
4.1	O-ring - Ø 16x1.5 mm	205141
5	Threaded sleeve	1006483
6	Connector (conveying air) - NW 5.5	1004366
7	Connector (supplementary air) - NW 5.5	1004367
8	O-ring - Ø 11x1.5 mm	1000532
9	Filter element - Ø 9/4x27 mm	1003698
10	Nozzle	1006488
11	Nozzle fixation - complete (incl. pos. 11.1)	1007792
11.1	O-ring - Ø 8x1 mm	1007793
12	Body (red)	1004369
13	Body black	1004370
