Powder Injector parts Quick release coupling for hose dia8/6 mm 203181

Quick release coupling 203181

Get prices

Product Details

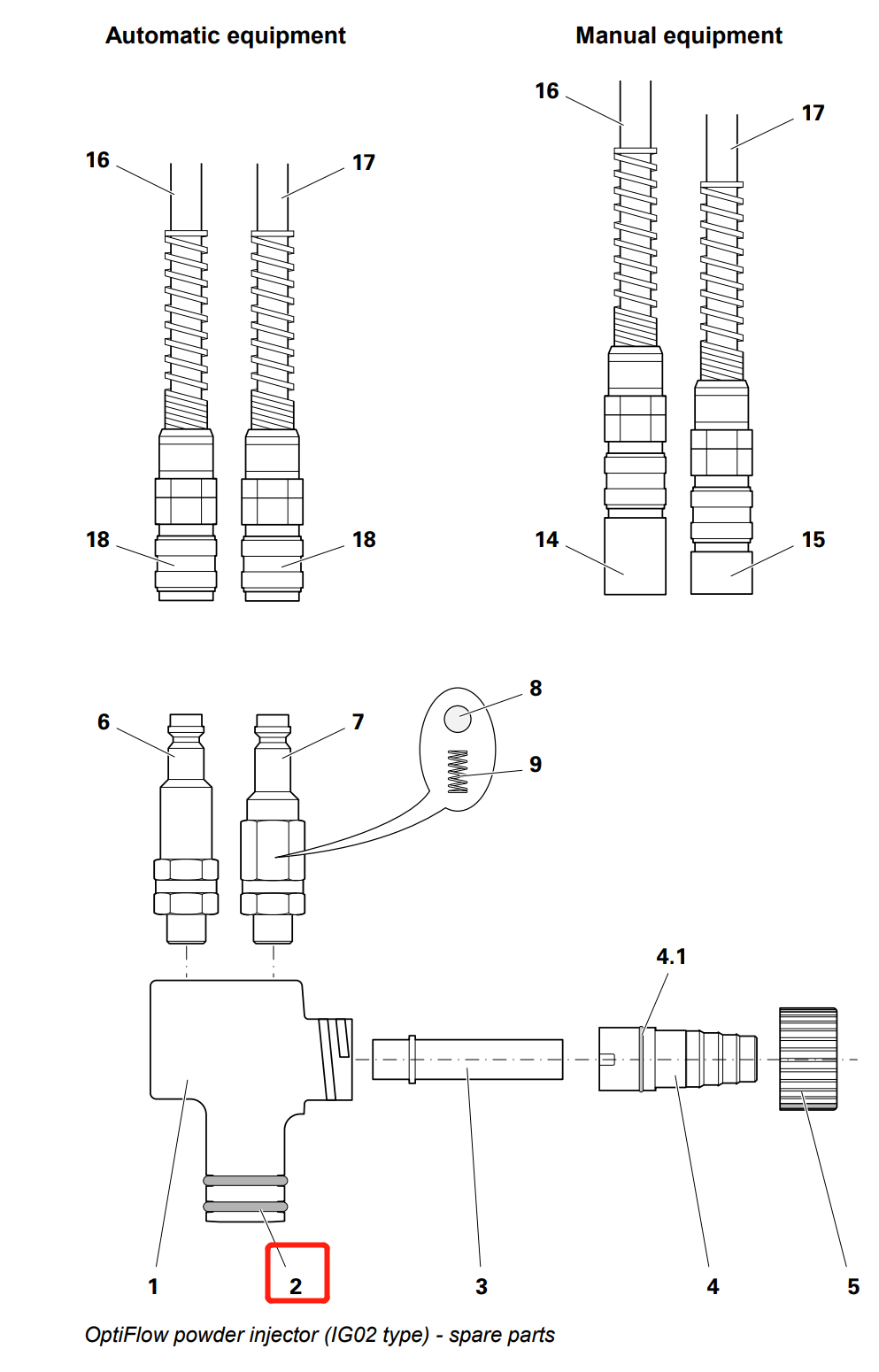

OptiFlow powder injector (IG02 type) - spare parts list

---	OptiFlow powder injector (complete, pos. 1-9)	391530
1	Injector body (without pos. 2)	1000132
2	O-ring - Ø 16x2 mm	231517
3	Insert sleeve - PTFE	377724
4	4 Hose connection (complete, incl. pos. 4.1)	387827
4.1	O-ring - Ø 15x1 mm	266930
5	Threaded sleeve	387819
6	Check valve conveying air (red marking) - complete (incl. pos. 8 and 9)	261211
7	7 Check valve supplementary air (black marking) - complete (incl. pos. 8 and 9)	261203
8	ball	240168
9	spring	240176

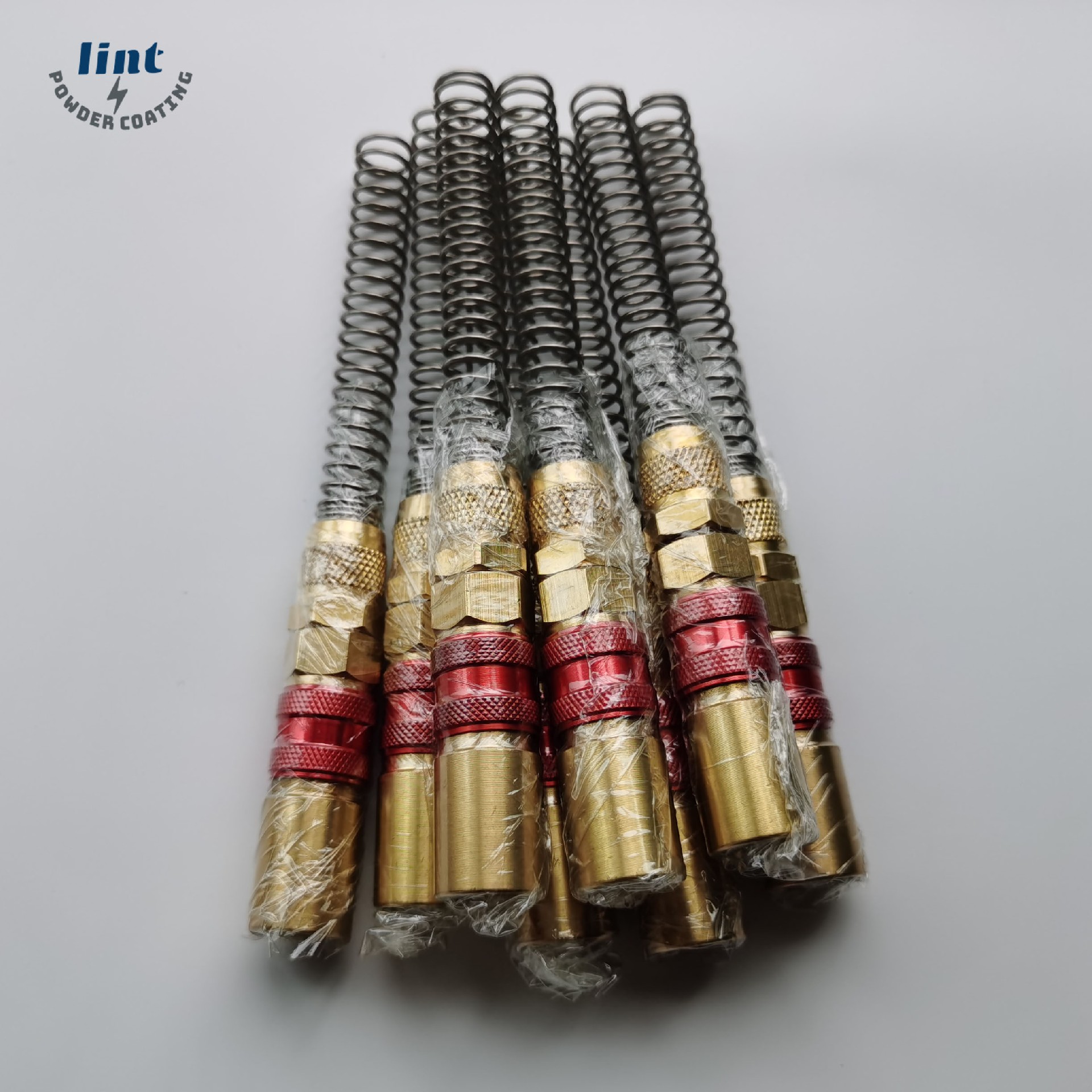

14	Quick release coupling red for conveying air hose - Ø 8/6 mm	261645
15	Quick release coupling for supplementary air hose - Ø 8/6 mm	261637
16	Conveying air hose - Ø 8/6 mm (red)	103500
17	Supplementary air hose - Ø 8/6 mm (black)	103756

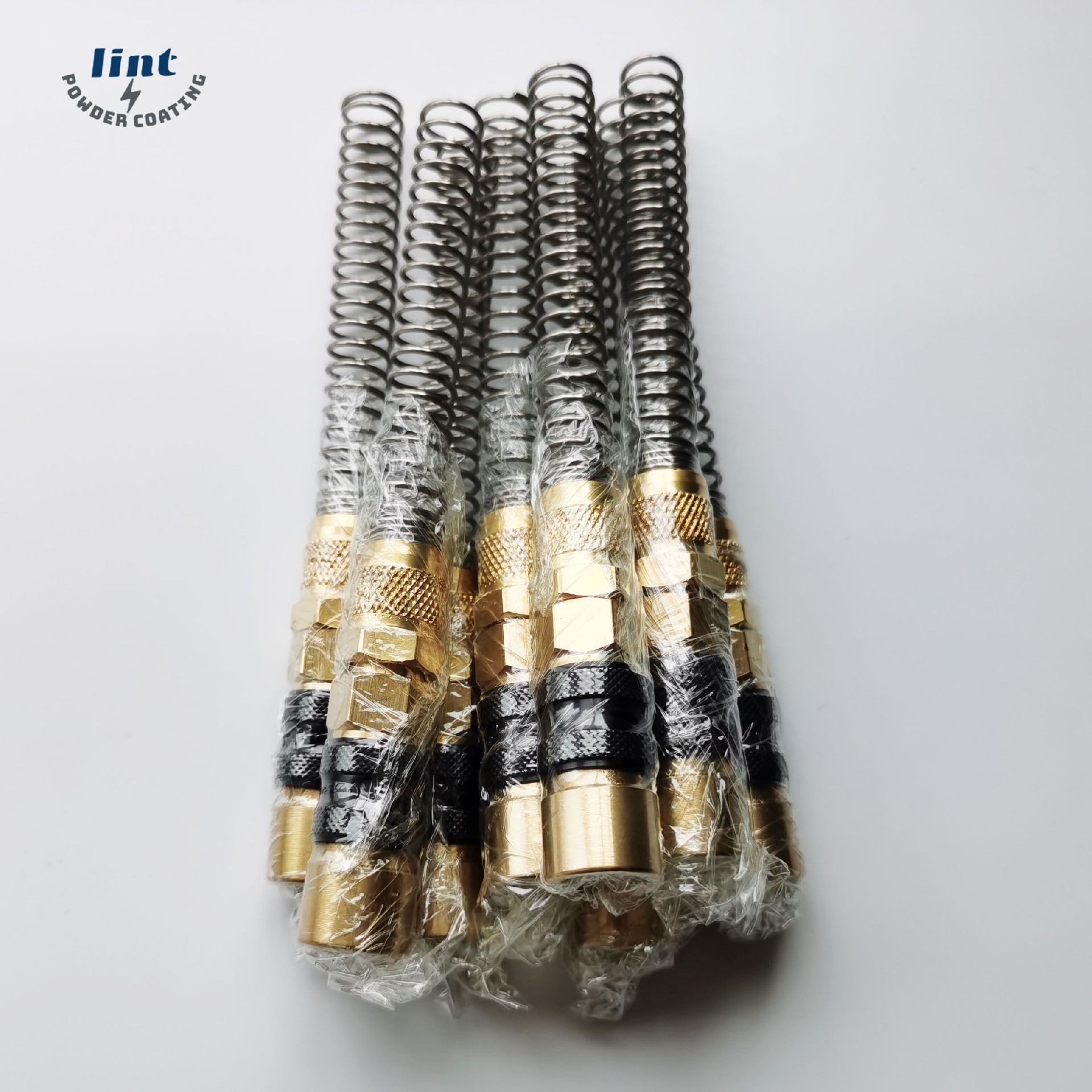

18	Quick release coupling for hose - Ø 8/6 mm	203181
	Powder hose - type 1001, PUR, Ø 16/11 mm (standard for automatic guns)	103012
	Powder hose - type 1004, PVC, Ø 16/11 mm (standard for manual equipment)	103128
	Powder hose - type 1005, PVC, Ø 20/12 mm (for manual equipment)	100080
	Powder hose - type 66, POE, Ø 16/11 mm, with conductive strip (for automatic guns)	105139
	Powder hose - type 74, POE, Ø 15/10 mm, with conductive strip (for automatic guns)	1001673
	Powder hose - type 75, POE, Ø 18/12 mm, with conductive strip (for automatic guns)	1001674
