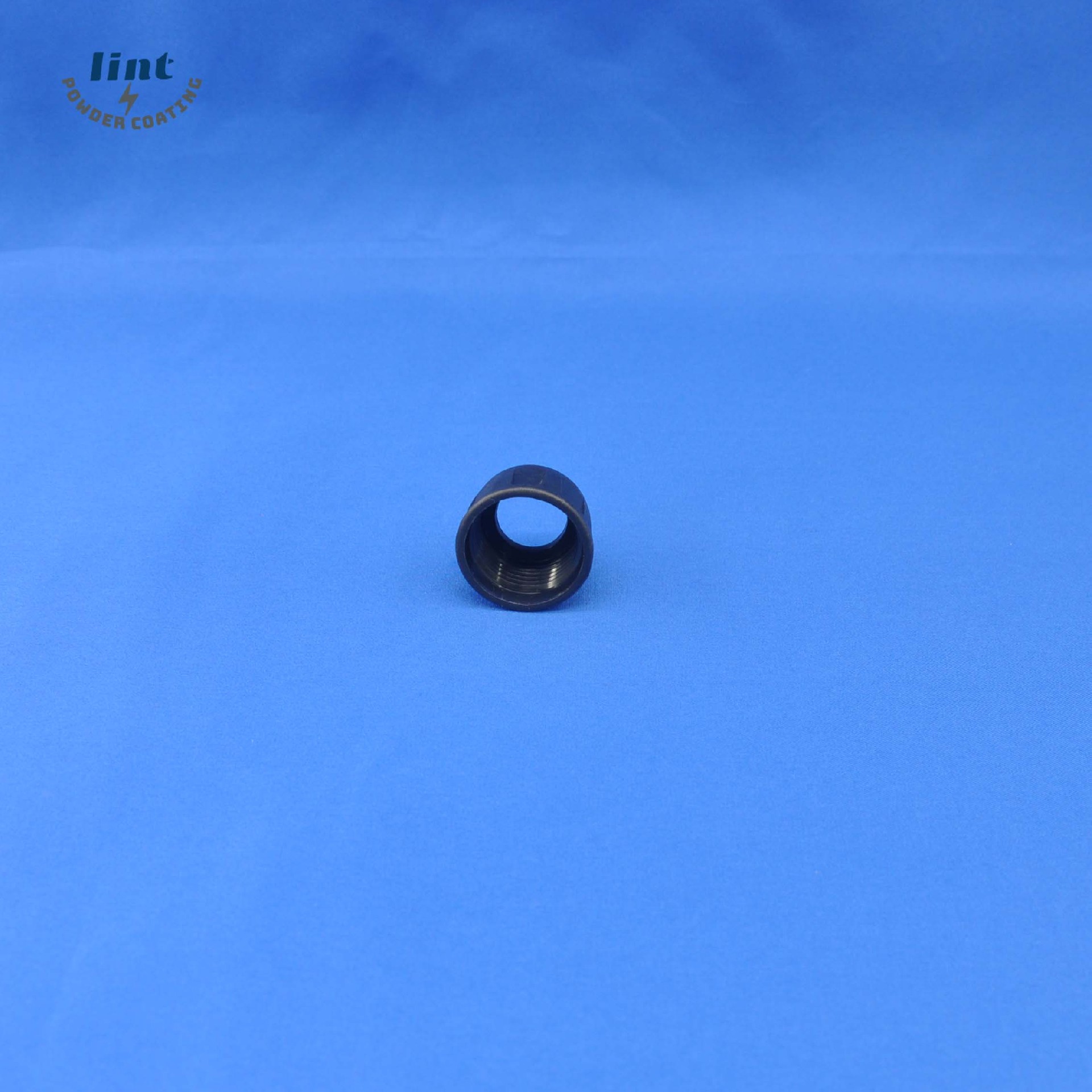

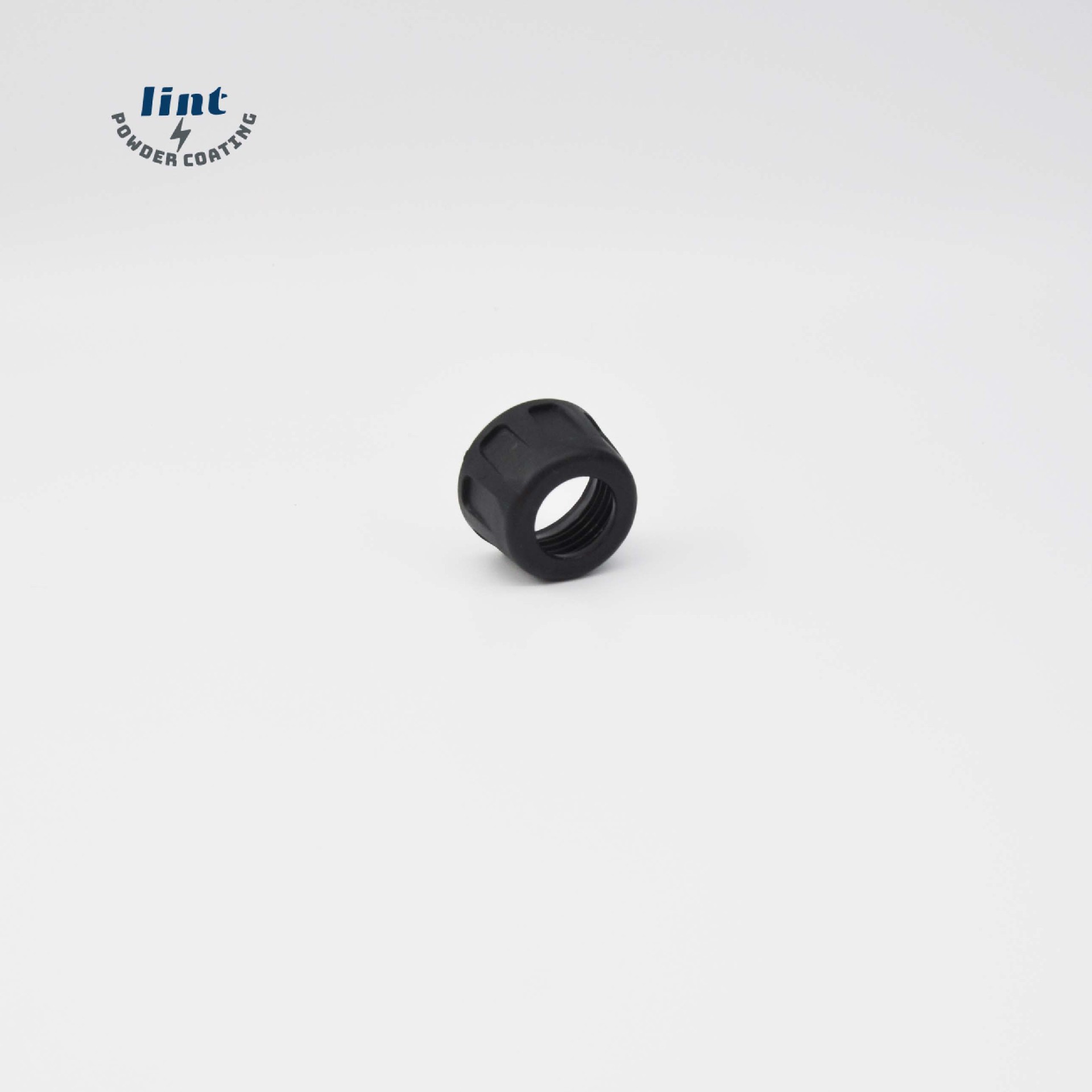

Threaded sleeve 1006483 for IG06 Injector
Threaded sleeve 1006 483
100% interchangable with original part.
Product Details

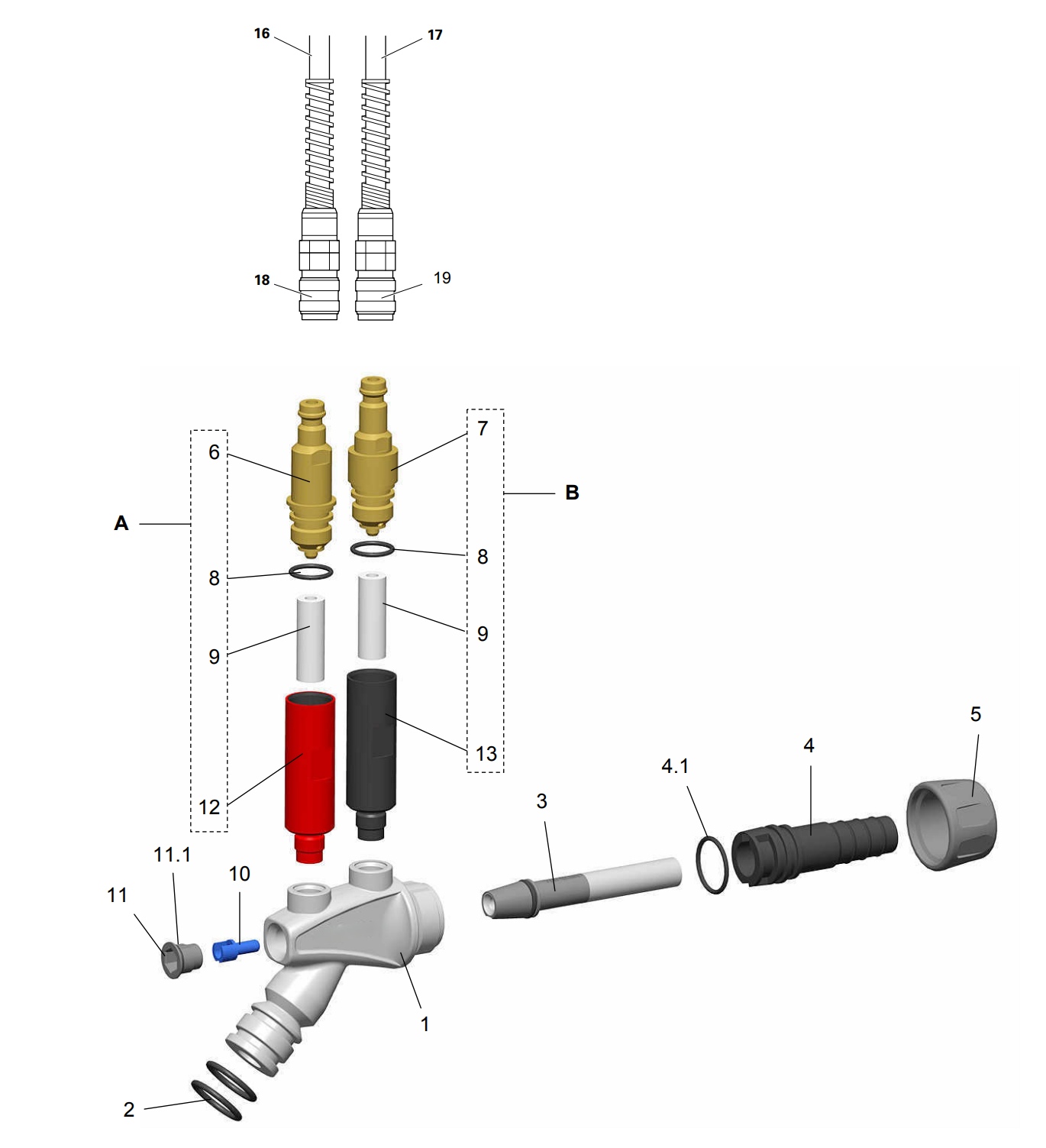

| - | Powder injector - complete (pos. 1-13) | 1007780 |
| A | Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12) | 1005589 |
| B | Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13) | 1005590 |
| C | Injector body - complete (incl. pos. 1, 2, 10 and 11) | 1006530 |
| 1 | Injector body (without pos. 2) | 1006484 |
| 2 | O-ring - Ø 16x2 mm | 1007794 |
| 3 | Insert sleeve - PTFE, complete | 1006485 |
| 4 | Hose connection - Ø 10-12 mm, complete (incl. pos 4.1) | 1006531 |
| 4.1 | O-ring - Ø 16x1.5 mm | 205141 |
| 5 | Threaded sleeve | 1006483 |
| 6 | Connector (conveying air) - NW 5.5 | 1004366 |
| 7 | Connector (supplementary air) - NW 5.5 | 1004367 |
| 8 | O-ring - Ø 11x1.5 mm | 1000532 |
| 9 | Filter element - Ø 9/4x27 mm | 1003698 |
| 10 | Nozzle | 1006488 |
| 11 | Nozzle fixation - complete (incl. pos. 11.1) | 1007792 |
| 11.1 | O-ring - Ø 8x1 mm | 1007793 |
| 12 | Body (red) | 1004369 |
| 13 | Body black | 1004370 |
